19-Inch Industrial Power Distribution Box Customized Rack-Mounted 25A 220VAC STS 1U Single-Phase Switch for Telecom

Model：BVT-DQ16JBVT-DQ25JBVT-DQ32J

Send Inquiry

Description

20 years of industry experience

Are mainly used in the telecommunication service center,
Railway Control Center ，internet/data exchange center,
industrial automation, automated office, DC screen/cabinet, etc.
To meet your various needs.

Product details

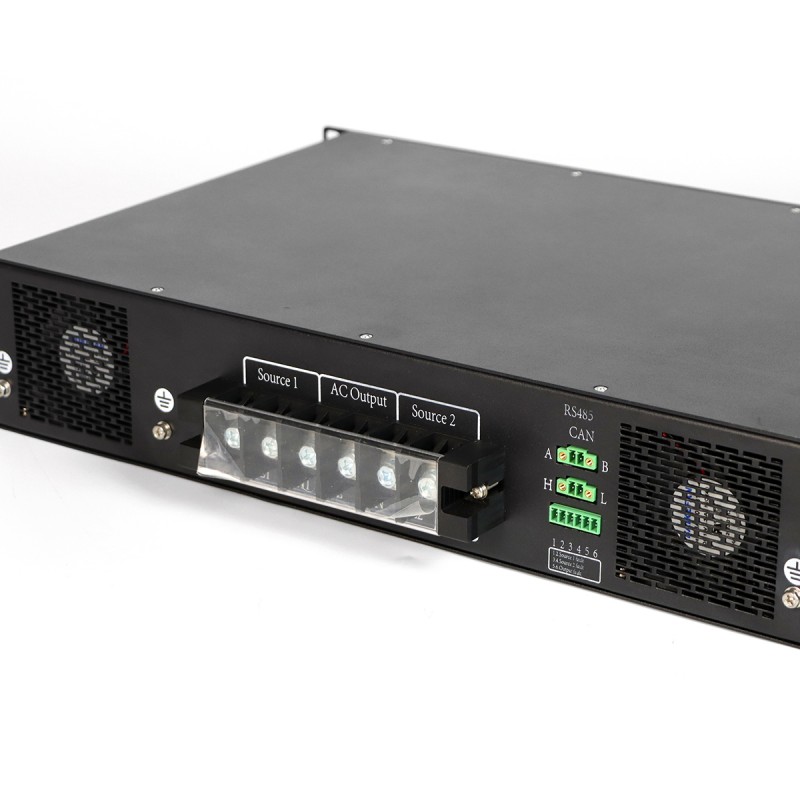

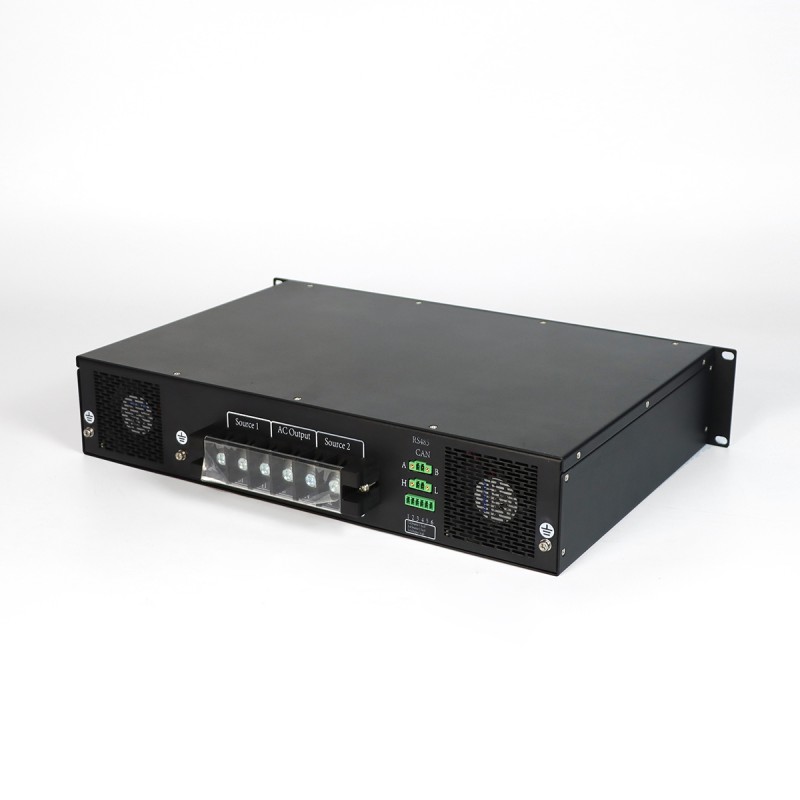

19-Inch Industrial Power Distribution Box Customized Rack-Mounted 25A 220VAC STS 1U Single-Phase Switch for Telecom

The static transfer switch is a dual-input transfer switch, usually one channel is connected, the other channel is disconnected, and the load is powered by one AC input. When one power supply fails, the STS automatically disconnects the original one, and turns on the other one that was disconnected, converting the load to the other power supply without interruption.

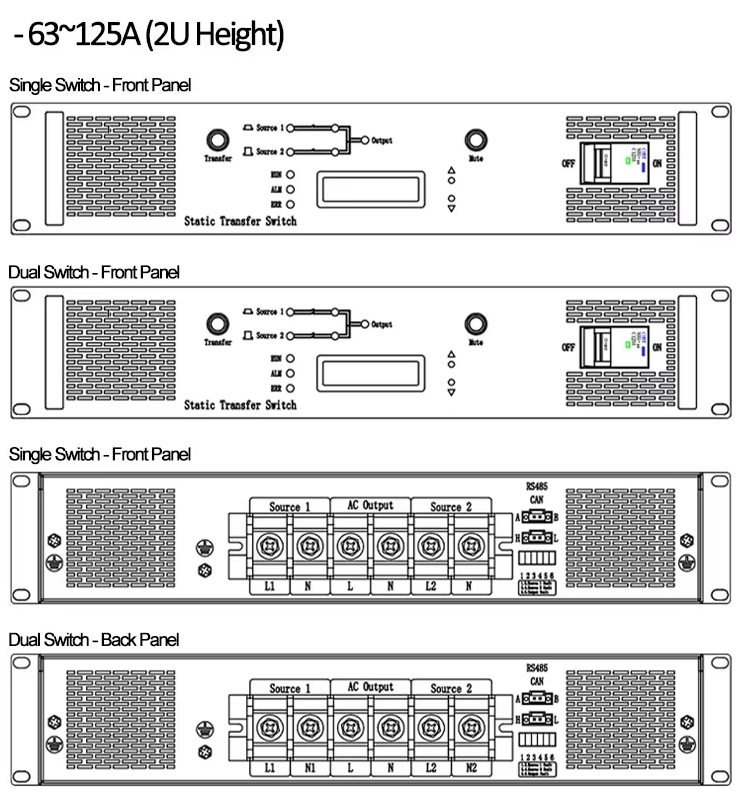

This model is designed for a 19-inch cabinet; it can also be installed on the front panel or in the center of the cabinet, depending on the location and location of the fixed edge.

Products Features:

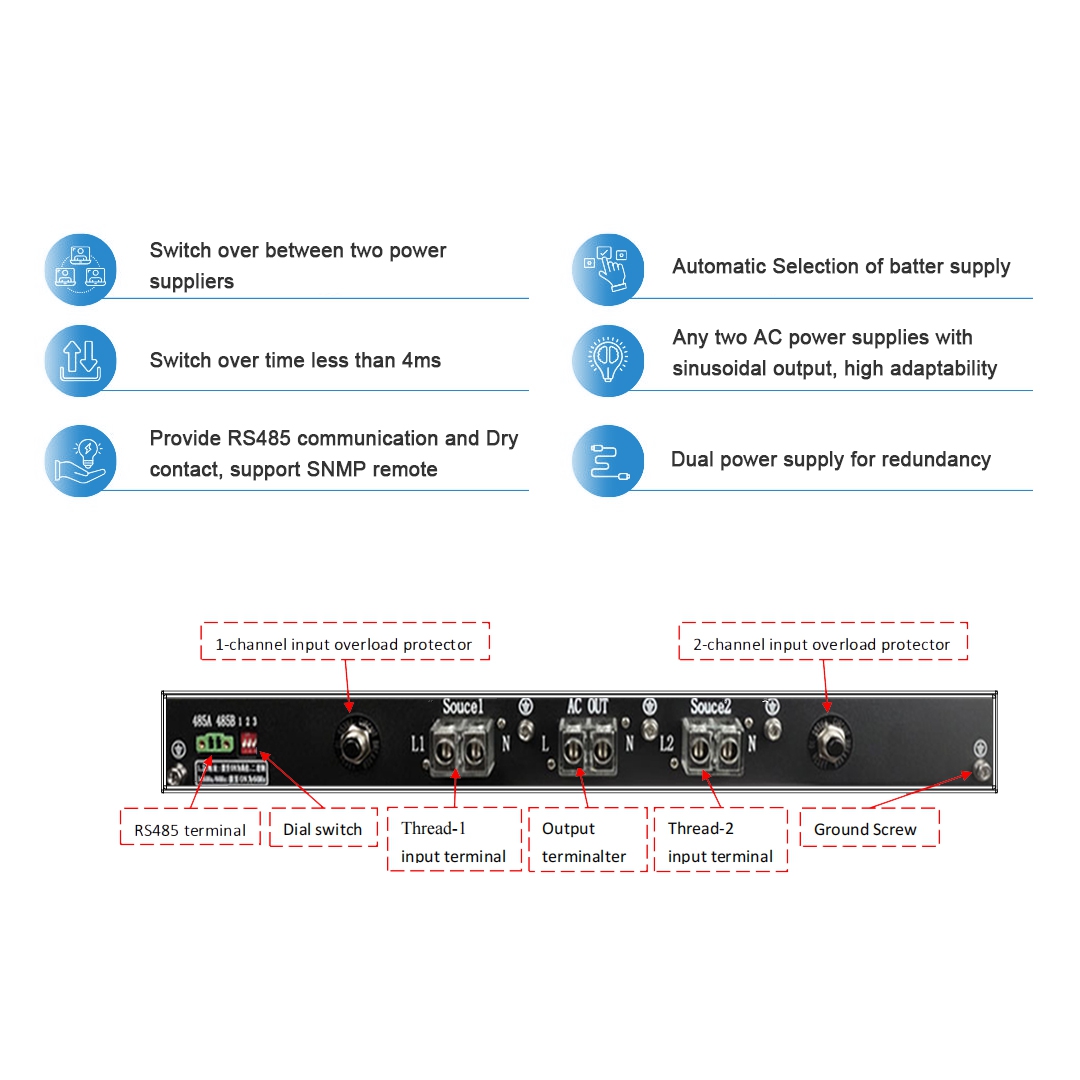

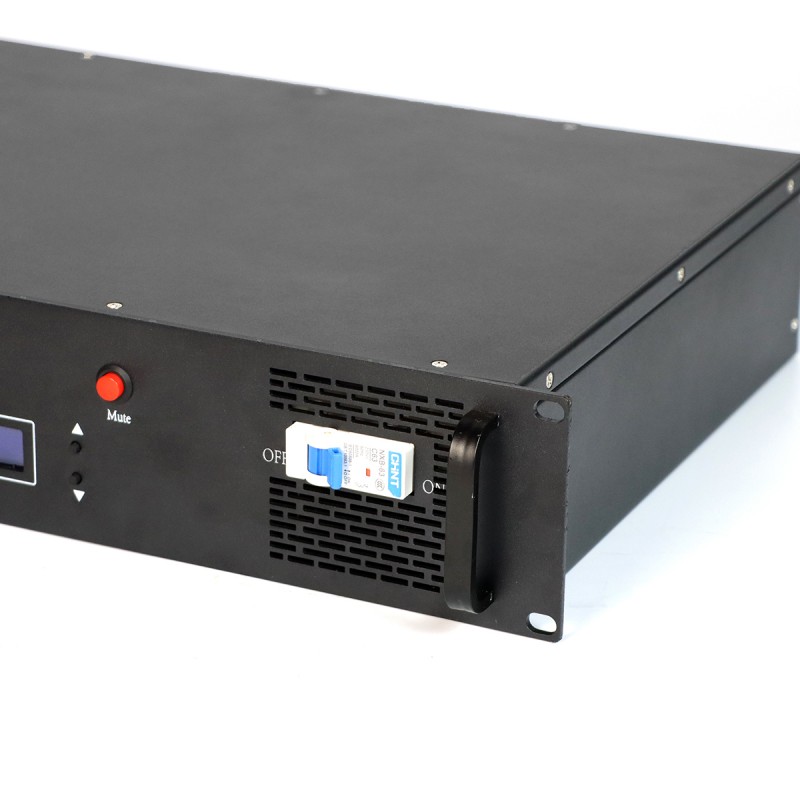

◆ Adopt full digital control, strong anti-interference ability, fast operation speed; ◆ Switch time ≤6ms, high reliability; ◆ Strong overload capacity, can withstand the full load boot; ◆ With the input of under-pressure, over-current and other protection functions; ◆ The front panel is equipped with a display screen and an indicator light to intuitively understand the STS status information; ◆ Provide fire line, zero line can be switched simultaneously STS version, appearance structure, performance is exactly the same.

Model	Rated Output Current	Allowable Output Current	Output Power	Rated Input Voltage
BVT-DQ16J	16	18	3500W	220VAC
BVT-DQ25J	25	28	6200W	220VAC
BVT-DQ32J	32	35	7700W	220VAC

Profil de l'entreprise

Item	Technical Parameters
Switch Time
Priority Switching	≤4m s
AC Input
Rated Voltage (VAC)	220
Input Voltage Range (VAC)	190~260
Rated Frequency (Hz)	50
Power Factor	1
Auto Convert Threshold Voltage	≤ 190Vac ± 5Vac or ≥260Vac ± 5Vac
Auto Convert Threshold Frequency	≤45Hz±0.2Hz or ≥65Hz±0.2Hz
Over-limit Protection Shutdown Threshold Voltage	160Vac or 265Vac, return ± 5V
Over-limit Protection Shutdown Threshold Frequency	45Hz or 65Hz, with differential ± 0.2Hz
Overload Capacity	Load current is 110%, operating continuously; Load current> 110%, immediately shut-off;
Insulation Strength	2KVAC，1min
Noise (1m)	≤55dB
Operating Ambient Temperature	-25～50℃
Transport and Storage Temperature	-40～70℃
Humidity	0~90%, with no condensation
Protection Rating	IP20
Altitude	≤3000, 2000～3000m Output reduction of 2% per 100m increase
Protection	Input under voltage, over voltage protection, output overload protection, over temperature protection, short circuit protection
